This is part 4 in a series of posts detailing how I’m securing my Internet communications using open-source software.
In part 1, I set up an OpenBSD VPS with full-disk encryption and the minimum OS install necessary to run OpenVPN.
Part 2 covered the installation of OpenVPN and configuring the PKI system.
Part 3 was a walk-through of OpenVPN configuration and actually running the OpenVPN daemon.
It should be noted that even these measures are only securing part of my traffic. Everything that exits my VPN endpoint is protected only by whatever protocol-specific security measures are already in place (e.g. HTTPS for web traffic).
On Mac OS X, Tunnelblick can be used to connect to the VPN server. It’s an open-source application that offers simple, OpenVPN-specific configuration and a convenient graphical interface.
To install, simply download and run the installer.
Before configuring the VPN, transfer the CA certificate and the client certificate and key from the VPN server to your client computer:
$ scp user@vpn.example.com:~/easy-rsa/keys/ca.crt ~/Desktop/
$ scp user@vpn.example.com:~/easy-rsa/keys/client1.example.com.crt ~/Desktop/
$ scp user@vpn.example.com:~/easy-rsa/keys/client1.example.com.key ~/Desktop/Note that we could have generated the client certificate and key on the client machine, and gone through the certificate signing process without ever transmitting the client’s private key over the network.

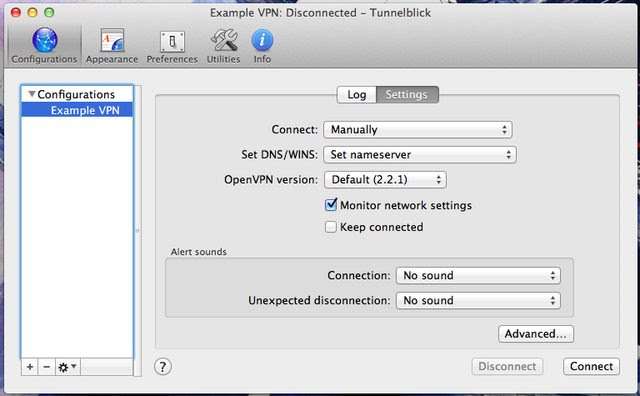

Open the Tunnelblick application. On the Configurations tab, click on the + icon in the lower left to add a new configuration. When prompted, select “I DO NOT have configuration files”.
Next, select “Create sample configuration and edit it”.
This process will create a sample configuration and put it on the Desktop.
Move the downloaded certificates and key into the configuration folder:
$ cd Desktop
$ mv ca.crt Sample\ Tunnelblick\ VPN\ Configuration/
$ mv client1.example.com.* Sample\ Tunnelblick\ VPN\ Configuration/Edit the config.ovpn file. It may already be open in your default text editor. The only changes necessary are:
Here’s a diff of those changes:
42c42
< remote vpn.example.com 80
---
> remote my-server-1 1194
89,90c89,90
< cert client1.example.com.crt
< key client1.example.com.key
---
> cert client.crt
> key client.keyThe Tunnelblick configuration folder can be renamed (in this case, to “Example VPN”). To use this configuration in Tunnelblick, add the .tblk extension to the folder name, and then double-click the folder to install the configuration in Tunnelblick.
Click on the “Railroad Tunnel” icon in the Mac OS X menu bar, and select the “Connect Example VPN” option.
That’s it - you’re now using Tunnelblick to route your Internet communications through OpenVPN running on a VPS-hosted OpenBSD server.
This is part 3 in a series of posts detailing how I’m securing my Internet communications using open-source software. In part 1, I set up an OpenBSD VPS with full-disk encryption and the minimum OS install necessary to run OpenVPN. Part 2 covered the installation of OpenVPN and configuring the PKI system.
It should be noted that even these measures are only securing part of my traffic. Everything that exits my VPN endpoint is protected only by whatever protocol-specific security measures are already in place (e.g. HTTPS for web traffic).
With the OpenVPN package installed and the PKI components in place, configuring and running the actual server software is straightforward. The OpenVPN package includes a sample server configuration file that makes a good starting point.
Make an OpenVPN configuration directory in /etc, and add a copy of the sample configuration, the CA certificate, the VPN server certificate and private key, and the Diffie-Hellman parameters:
# As root...
$ mkdir /etc/openvpn
# Copy the sample configuration
$ cp /usr/local/share/examples/openvpn/sample-config-files/server.conf /etc/openvpn/server.conf
# Copy PKI materials from the easy-rsa working directory
$ cp easy-rsa/keys/ca.crt /etc/openvpn/ca.crt
$ cp easy-rsa/keys/dh4096.pem /etc/openvpn/dh4096.pem
$ cp easy-rsa/keys/vpn.example.com.crt /etc/openvpn/vpn.example.com.crt
# Make a private directory for the server key
$ mkdir /etc/openvpn/private
$ chmod 500 /etc/openvpn/private
# Move the server key from the easy-rsa working directory
$ mv easy-rsa/keys/vpn.example.com.key /etc/openvpn/private/vpn.example.com.key
$ chmod 400 /etc/openvpn/private/vpn.example.com.keyI made the following changes to the default configuration:
Here’s the diff of the server.conf changes:
$ diff /etc/openvpn/server.conf /usr/local/share/examples/openvpn/sample-config-files/server.conf
32c32
< port 80
---
> port 1194
53c53
< dev tun0
---
> dev tun
78,80c78,80
< ca /etc/openvpn/ca.crt
< cert /etc/openvpn/vpn.example.com.crt
< key /etc/openvpn/private/vpn.example.com.key # This file should be kept secret
---
> ca ca.crt
> cert server.crt
> key server.key # This file should be kept secret
87c87
< dh /etc/openvpn/dh4096.pem
---
> dh dh1024.pem
187c187
< push "redirect-gateway def1 bypass-dhcp"
---
> ;push "redirect-gateway def1 bypass-dhcp"
195,196c195,196
< push "dhcp-option DNS 208.67.222.222"
< push "dhcp-option DNS 208.67.220.220"
---
> ;push "dhcp-option DNS 208.67.222.222"
> ;push "dhcp-option DNS 208.67.220.220"
255c255
< max-clients 2
---
> ;max-clients 100Note that in this configuration, the server doesn’t need to store individual client certificates. The server will only accept clients whose certificates were signed by the master CA certificate (the same one that signed the server certificate).
The OS requires a few additional tweaks to run OpenVPN.
Turn on packet forwarding:
$ sysctl -n net.inet.ip.forwarding=1Add the following line to pf.conf to perform Network Address Translation on VPN connections (the 10.8.0.0/24 block is distributed via DHCP to OpenVPN clients):
pass out on em0 from 10.8.0.0/24 to any nat-to (em0)$ /usr/local/sbin/openvpn --daemon --config /etc/openvpn/server.conf
# Verify that it's actually running:
$ ps -aux | grep openvpn
_openvpn 2900 0.0 0.3 1720 3424 ?? Ss Mon03PM 21:49.15 /usr/local/sbin/openvpn --daemon --config /etc/openvpn/server.confLog output will appear in /var/log/daemon. At this point, there are no clients, so it’s enough that the daemon starts without errors.
This is part 2 in a series of posts detailing how I’m securing my Internet communications using open-source software. In part 1, I set up an OpenBSD VPS with full-disk encryption and the minimum OS install necessary to run OpenVPN.
It should be noted that even these measures are only securing part of my traffic. Everything that exits my VPN endpoint is protected only by whatever protocol-specific security measures are already in place (e.g. HTTPS for web traffic).
Installing and configuring the OpenVPN package can seem daunting at first, but given a relatively simple VPN architecture (many clients, one server), the setup is straightforward. Many of the steps below are cribbed from the OpenVPN section of “Building VPNs on OpenBSD”, which is 4 years old but still informative.
Install the OpenVPN package from the installation media or an official OpenBSD mirror site. The OpenBSD FAQ has instructions for setting up the package system.
# Dutch mirror site
$ export PKG_PATH="http://ftp.nluug.nl/pub/OpenBSD/5.3/packages/`machine -a`"
$ pkg_add openvpnNext, make a copy of the easy-rsa directory:
$ cp -R /usr/local/share/examples/openvpn/easy-rsa/2.0 easyrsa
$ cd easyrsaThe version of easy-rsa that’s included with OpenVPN on OpenBSD 5.3 is missing the whichopenssl script, so in the vars file, the KEY_CONFIG line must be edited in addition to the other KEY* lines. Here is a diff with my changes:
$ diff vars /usr/local/share/examples/openvpn/easy-rsa/2.0/vars
29c29
< export KEY_CONFIG="$EASY_RSA/openssl-1.0.0.cnf"
---
> export KEY_CONFIG=`$EASY_RSA/whichopensslcnf $EASY_RSA`
53c53
< export KEY_SIZE=4096
---
> export KEY_SIZE=1024
64,71c64,72
< export KEY_COUNTRY="ZZcountry"
< export KEY_PROVINCE="ZZprovince"
< export KEY_CITY="ZZcity"
< export KEY_ORG="example"
< export KEY_EMAIL=
< export KEY_CN=
< export KEY_NAME=
< export KEY_OU=
---
> export KEY_COUNTRY="US"
> export KEY_PROVINCE="CA"
> export KEY_CITY="SanFrancisco"
> export KEY_ORG="Fort-Funston"
> export KEY_EMAIL="me@myhost.mydomain"
> export KEY_EMAIL=mail@host.domain
> export KEY_CN=changeme
> export KEY_NAME=changeme
> export KEY_OU=changemeBecause they are likely to change for each certificate generated, the KEY_EMAIL, KEY_CN, KEY_NAME, and KEY_OU values can be removed from the file.
After editing the vars file, source it and run these scripts to setup the PKI system:
$ . vars
$ ./clean-all
$ ./build-dh
$ ./pkitool --initcaGenerate a certificate for the VPN server:
$ ./pkitool --server vpn.example.comAnd one or more client certificates:
# Can also supply KEY_CN, KEY_OU, and KEY_EMAIL
$ KEY_NAME=client1 ./pkitool client1.example.comThe keys directory should now be full of certificates, keys, and signing requests:
$ ls keys/
01.pem
02.pem
ca.crt
ca.key
dh4096.pem
serial
vpn.example.com.crt
vpn.example.com.csr
vpn.example.com.key
client1.example.com.crt
client1.example.com.csr
client1.example.com.key
...
